Description

2500 kg Low Profile Manual Hand Pallet Truck with 51 mm Lowered Height

The Steerx Low Profile Manual Hand Pallet Truck is designed for material-handling applications where fork-entry clearance is limited.

Unlike a conventional manual pallet truck, this low-profile model is designed to reach beneath loads positioned close to the floor. Its 51 mm lowered fork height makes it suitable for compatible low entry pallets, skids and specialized load carriers.

With a rated capacity of 2500 kg, the truck combines low-profile access with the load capacity required for many warehouse, logistics and industrial applications.

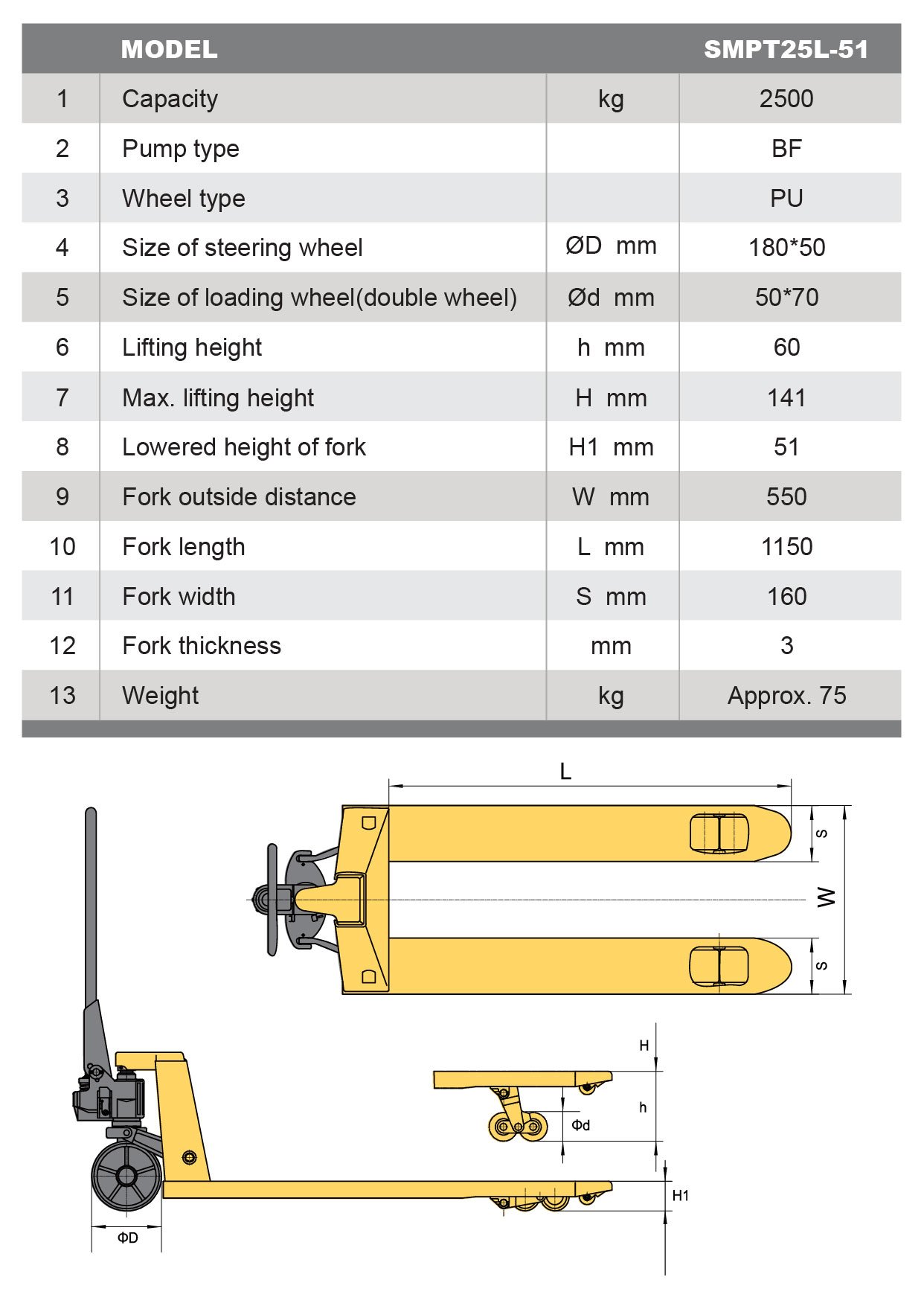

A 51 mm minimum fork height is a common specification for 2 ton low profile pallet trucks designed specifically for low-entry applications.

Ultra-Low 51 mm Fork Entry Height

The main advantage of this low profile pallet truck is its 51 mm lowered fork height.

This low entry height allows the forks to reach beneath suitable pallets and load carriers positioned close to the floor.

It is particularly useful for:

• Low-entry pallets
• Special pallets
• Low-profile skids
• Wooden crates
• Plastic pallets
• American pallets
• Japanese pallets
• Certain Euro pallets
• Industrial load platforms

2500 kg Heavy-Duty Load Capacity

With a 2500 kg / 2.5 ton rated capacity, the Steerx low-profile pallet truck provides substantial load-handling capability while retaining its low-entry design.

This makes it suitable for businesses that need to combine:

Low fork height + high load capacity + manual hydraulic operation.

The 2.5 ton capacity is particularly relevant for warehouse and industrial users handling medium-to-heavy palletized goods. Steerx already offers a conventional 2500 kg manual pallet truck, making the SMPT25L-51 a specialized low clearance alternative within the product range.

Designed for Low Clearance Pallets

The 51 mm minimum fork height is the key specification for applications where conventional pallet trucks cannot obtain sufficient entry clearance.

This makes the SMPT25L-51 particularly useful for handling:

Low-Profile Pallets

Pallets manufactured with reduced clearance underneath the deck.

Special Pallets

Non-standard pallet designs requiring a lower fork entry height.

Industrial Skids

Low-mounted machinery, components and industrial loads.

Crates & Load Carriers

Suitable compatible crates and containers positioned close to the floor.

Specialized Warehouse Loads

Applications where low fork access is more important than standard pallet dimensions.

Applications

Warehouse Material Handling – Ideal for moving suitable low-profile pallets and specialized load carriers between storage and staging areas.

Logistics & Distribution – Suitable for short-distance transportation of compatible palletized goods in distribution centers and logistics facilities.

Manufacturing – Useful for moving components, materials, crates and industrial loads that require low fork entry.

Industrial Workshops – Suitable for transporting machinery parts, fabricated components and other low-mounted loads.

Loading & Unloading – The low fork height can help operators access compatible low-clearance loads during loading and unloading operations.
