MANUAL HAND PALLET TRUCK – 2500 KG
Heavy Duty 2500 kg Manual Hand Pallet Truck
The Steerx Manual Hand Pallet Truck 2500 kg with 1220 mm × 685 mm forks is a heavy-duty hydraulic pallet truck designed for efficient pallet handling, lifting and transportation in warehouses, factories, logistics centers, distribution facilities and industrial applications.
With a 2500 kg load capacity, 1220 mm fork length and 685 mm overall fork width, this manual pallet truck provides a practical solution for moving heavy and wide palletized loads over short distances. The configuration features a robust steel construction, hydraulic lifting system, nylon steering and load wheels, ergonomic operating handle and controlled fork lowering.
The pallet truck has a 75 mm minimum fork height and 195 mm maximum fork height, making it suitable for standard pallet handling operations.
Steerx supplies manual hand pallet trucks in the UAE for warehouses, logistics companies, factories, workshops, retail distribution centers and other material handling applications.
Description
2500 kg Heavy Duty Manual Hand Pallet Truck
The Steerx 2500 kg Manual Hand Pallet Truck is designed to provide dependable and efficient pallet handling for warehouses, logistics operations, factories and industrial workplaces.
Also known as a manual pallet jack, hydraulic pallet jack, pallet trolley or hand pallet truck, this equipment uses a hydraulic pumping mechanism to lift palletized loads from the floor and allows the operator to manually move them to the required location.
The Steerx 2500 kg Manual Hand Pallet Truck is designed for businesses that require a dependable and easy-to-operate solution for everyday pallet movement.
Unlike powered pallet trucks, this manual pallet jack operates using a hydraulic lifting mechanism and manual steering, making it suitable for applications where loads need to be transported over relatively short distances without battery charging or electrical power.
The 1220 mm × 685 mm fork configuration provides a wider fork arrangement compared with the 550 mm version, making it particularly suitable for applications requiring wider pallet support.
2500 kg Load Capacity
The 2500 kg load capacity makes this manual hand pallet truck suitable for a broad range of warehouse and industrial material-handling requirements.
The 2.5 ton capacity is suitable for moving palletized:
- Raw materials
- Finished goods
- Cartons and packaged products
- Industrial components
- Machinery parts
- Warehouse inventory
- Manufacturing materials
- Distribution loads
Strong Steel Forks and Frame
The pallet truck is constructed for demanding warehouse and industrial handling applications. The 685 mm wide fork configuration gives the truck a broad load-supporting arrangement while the 1220 mm fork length provides suitable pallet engagement.

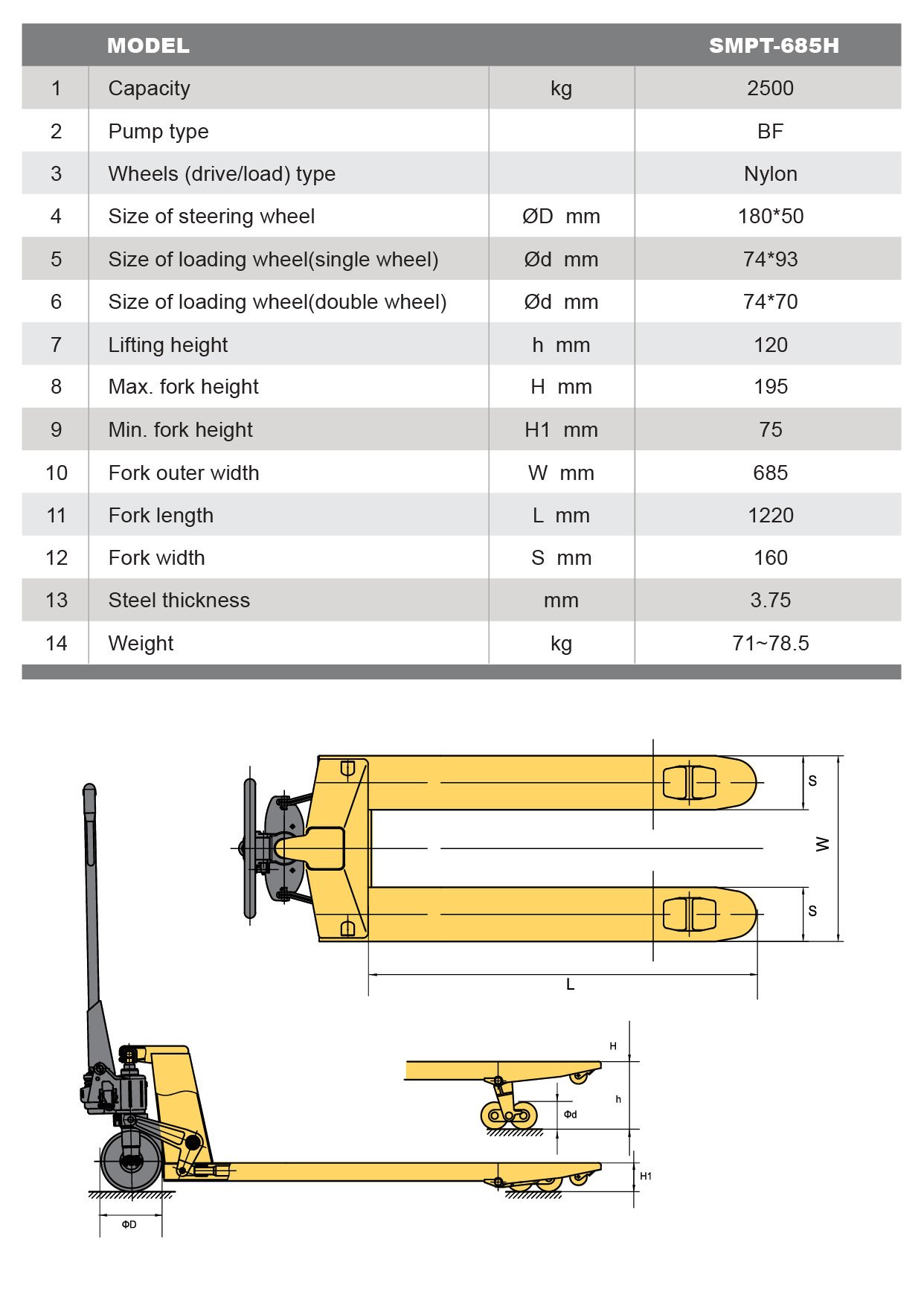

The SMPT-685H catalogue specification lists 3.75 mm steel thickness for this configuration.
Nylon Wheels for Smooth Handling
The Steerx SMPT-685H uses nylon drive and load wheels. The configuration includes 180 × 50 mm steering wheels and either single or double load-wheel arrangements.
Nylon wheels are commonly used for material handling equipment operating on smooth industrial floors and warehouse surfaces.
Applications
The 2500 kg manual hand pallet truck is suitable for a wide range of material handling environments, including:
- Warehouses
- Logistics companies
- Distribution centres
- Manufacturing facilities
- Factories
- Workshops
- Retail warehouses
- Supermarkets and distribution stores
- Loading and unloading areas
- Industrial storage facilities
- Packaging and processing facilities
- Pallet handling operations
