1500 kg Electric Straddle Leg Stacker for Warehouse Material Handling

The 1500 kg Electric Straddle Leg Stacker is designed for businesses that require powered pallet lifting and stacking while also needing the flexibility of a straddle-leg configuration.

With a 1500 kg load capacity and 3500 mm lifting height, this electric pallet stacker can be used to lift palletized goods to elevated storage positions and transport them within suitable warehouse and industrial environments.

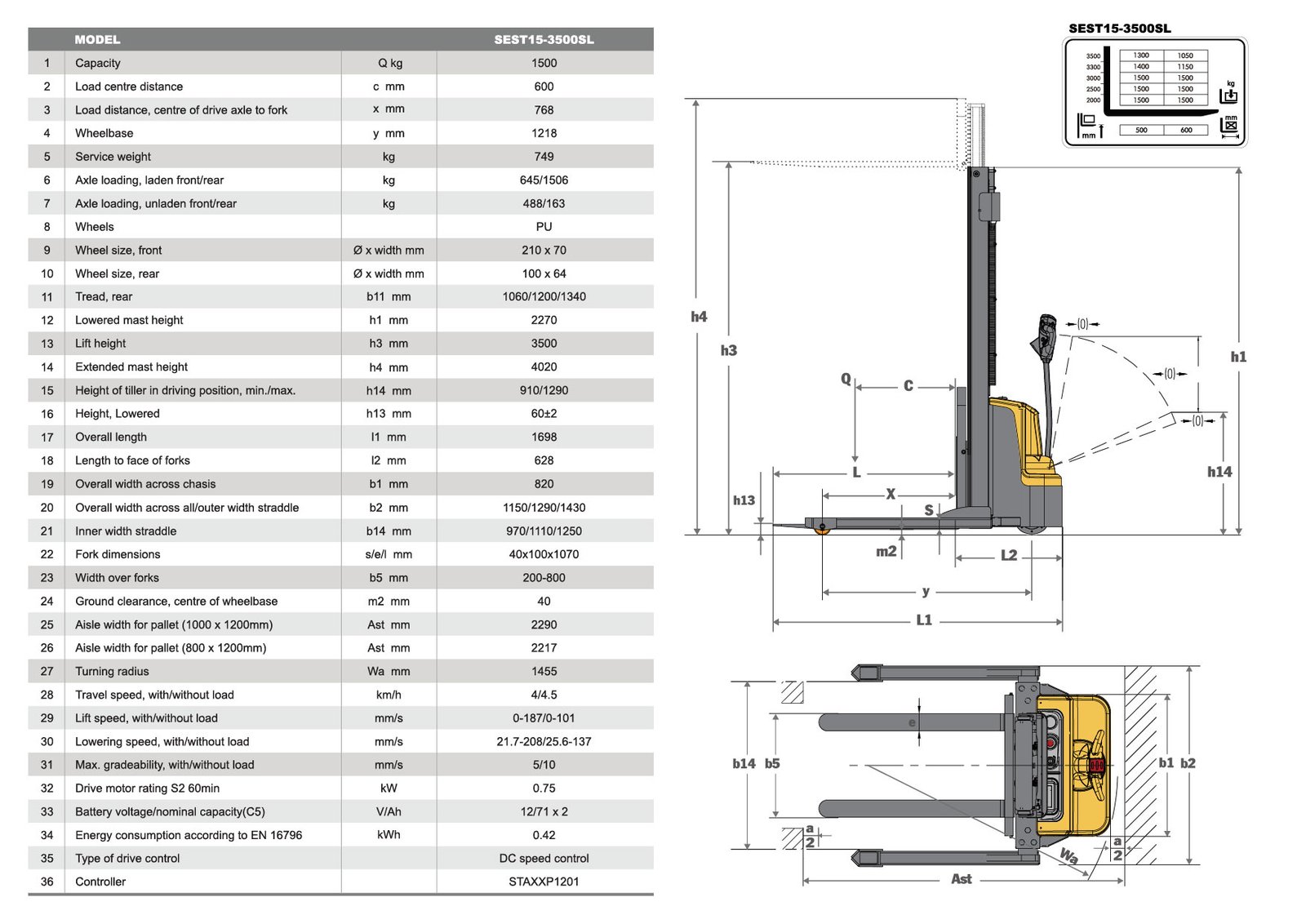

The STEERX product range identifies the SEST15-3500SL as a full-electric walkie/pedestrian straddle-leg stacker with a 1500 kg capacity and 3500 mm lifting height.

STEERX model confirms its 1500 kg capacity and 3500 mm lifting height, and describes the straddle leg design as suitable for both open and closed pallets.

1500 kg Heavy-Duty Load Capacity

With a rated load capacity of 1500 kg, this electric straddle leg stacker is designed for medium- to heavy-duty pallet handling applications.

It can be used for handling:

• Palletized raw materials
• Finished products
• Industrial components
• Manufacturing materials
• Warehouse inventory
• Cartons and packaged goods
• Production supplies
• Distribution loads
• Retail inventory
• Industrial pallets



The actual permissible load depends on the load center, lifting height, pallet condition and manufacturer’s load chart. Operators should always follow the rated capacity and operating instructions for the specific machine.

A straddle leg stacker uses supporting legs positioned around the pallet rather than relying only on conventional fixed legs.

This configuration allows the supporting legs to straddle the outside of the pallet while the forks enter underneath the load.

Depending on the exact configuration, straddle stackers can therefore provide greater flexibility when handling open-bottom and closed-bottom pallets or different pallet arrangements. Current straddle stacker references specifically describe this application.

This makes the electric straddle leg stacker particularly useful for warehouses handling different pallet styles or non-standard pallet configurations.

Applications of the Electric Straddle Leg Stacker

The 1500 kg electric straddle leg pallet stacker can be used for:

• Warehouse pallet stacking
• Rack replenishment
• Pallet storage
• Goods receiving
• Goods dispatch
• Warehouse material transfer
• Production material handling
• Manufacturing facilities
• Logistics centers
• Distribution centers
• Retail warehouses
• Industrial storage
• Pallet staging
• Internal logistics
• Material handling operations

Electric Straddle Stacker vs Standard Electric Stacker

Both machines are designed for pallet lifting and stacking, but their supporting-leg configurations differ.

Standard Electric Stacker

A conventional electric stacker uses a standard base/leg arrangement and is typically selected according to the pallet entry requirements of the application.

Electric Straddle Leg Stacker

A straddle-leg stacker positions its supporting legs around the pallet, allowing the forks to enter the load while the legs remain outside the pallet.

This can provide additional flexibility when handling open and closed-bottom pallets, depending on pallet dimensions and the machine’s adjustable leg configuration.

The STEERX range includes electric pallet trucks, electric stackers, straddle-leg stackers, reach stackers, manual pallet trucks and other warehouse material handling equipment.
