Description

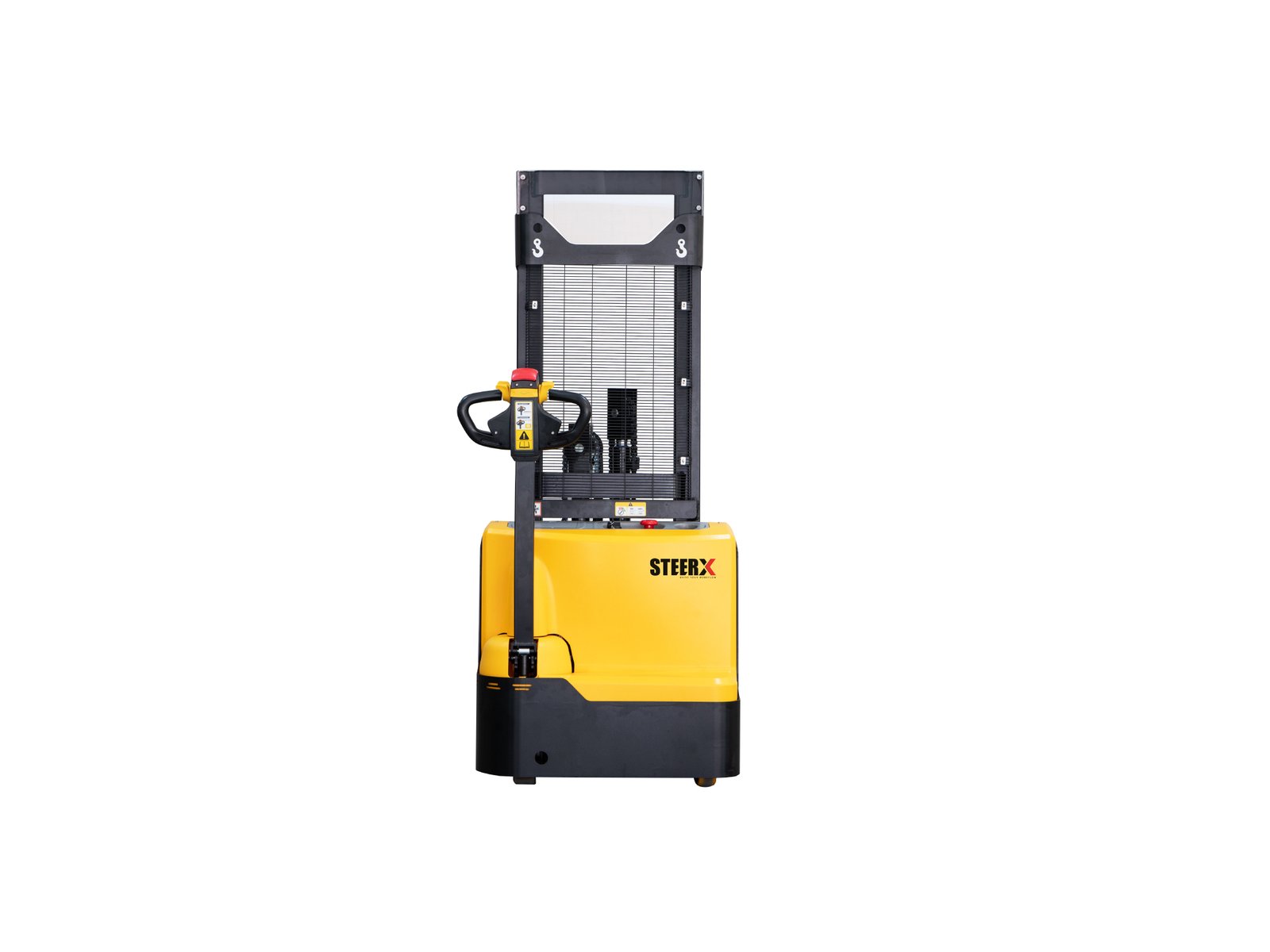

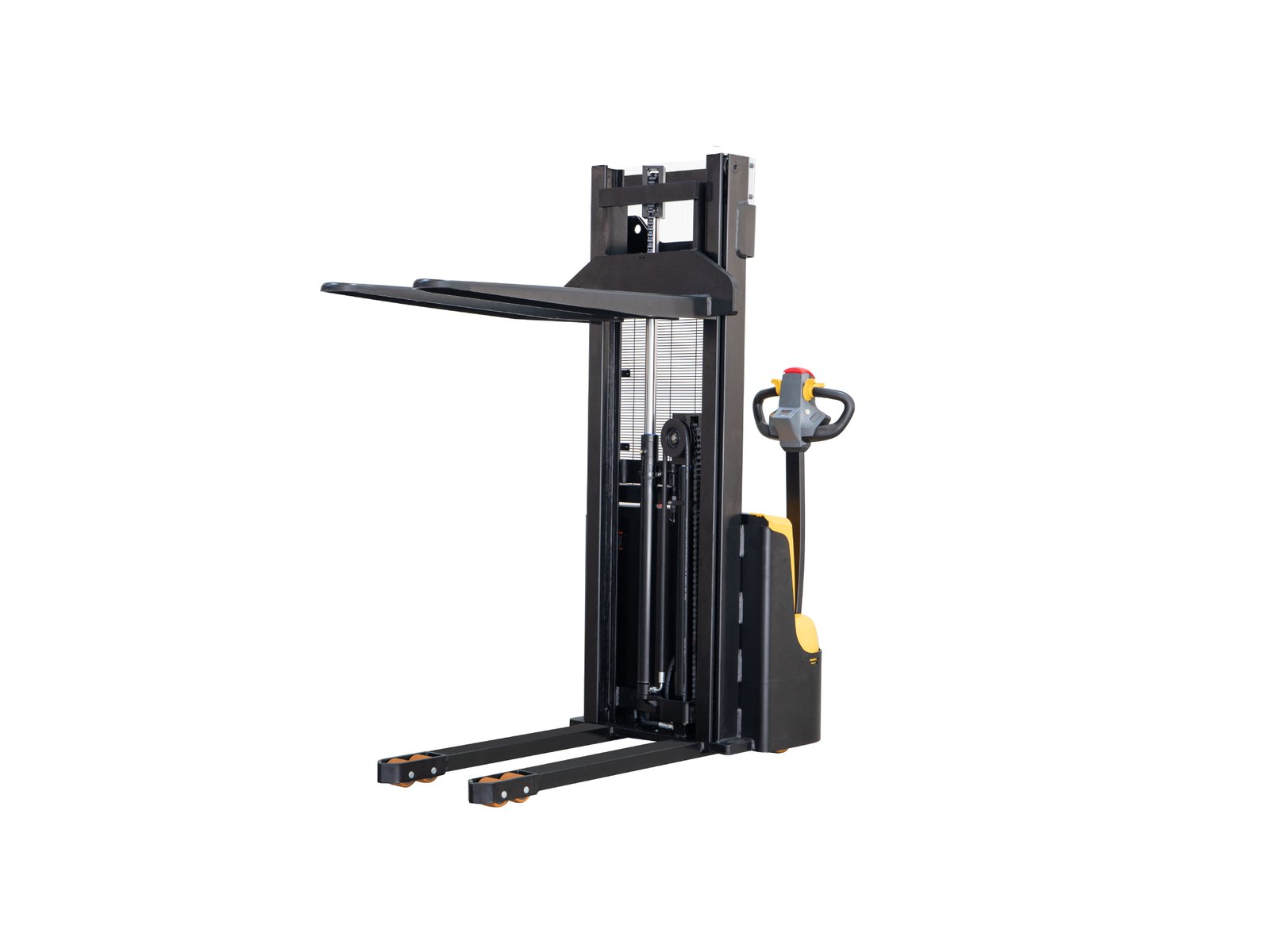

1200 kg Full Electric Free Lift Stacker with 3500 mm Lifting Height

The 1200 kg Full Electric Free Lift Stacker is designed for efficient pallet handling in warehouses, logistics facilities, factories, distribution centers and other industrial environments. The equipment combines electric travel and electric lifting with a free-lift mast, allowing operators to handle pallets in locations where conventional mast extension may be restricted by overhead clearance.

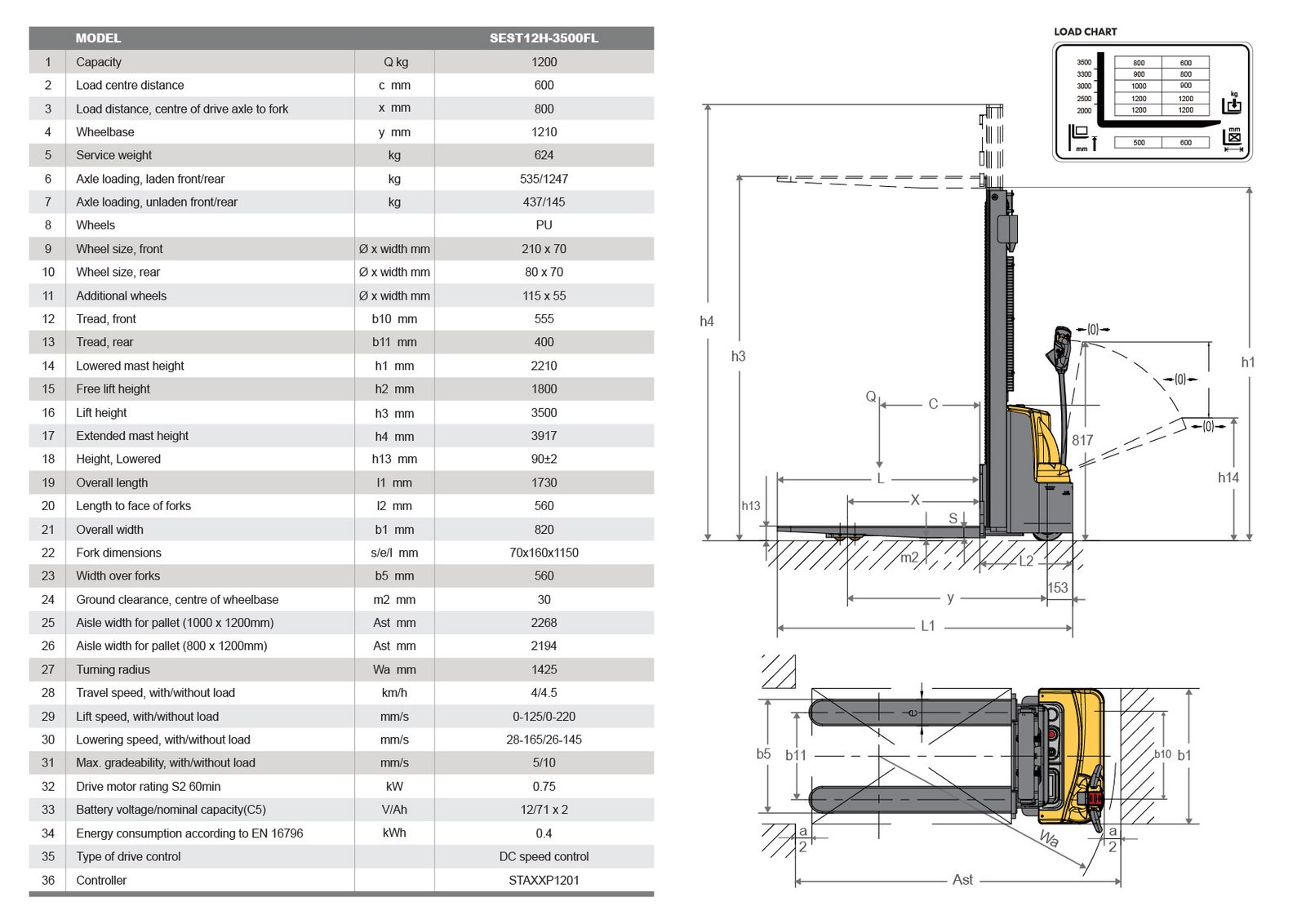

The STEERX SEST12H-3500FL is specified with a 1200 kg capacity and 3500 mm lifting height. Its free-lift mast is particularly useful in applications involving low ceilings, containers, trucks, elevators and confined warehouse areas.

Unlike a conventional stacker where the mast begins extending as the forks are raised, a free-lift mast permits initial fork movement while keeping the mast from immediately extending upward. This gives the operator greater flexibility when lifting pallets in areas with restricted vertical clearance. Comparable 1200 kg / 3500 mm free-lift stackers use this principle specifically for containers, trucks and low headroom warehouse applications.

What Is a Free Lift Electric Stacker?

A free lift electric stacker is a battery-powered pallet stacker equipped with a mast that provides a dedicated free-lift function.

The free-lift function allows the forks to rise through an initial portion of their lifting range without the mast immediately increasing in overall height. This is especially useful where the equipment needs to lift a pallet while working underneath a low ceiling, inside a truck or container, or in another area with restricted headroom.

This makes a free lift pallet stacker different from a conventional electric stacker and gives it an important advantage for specialized warehouse applications.

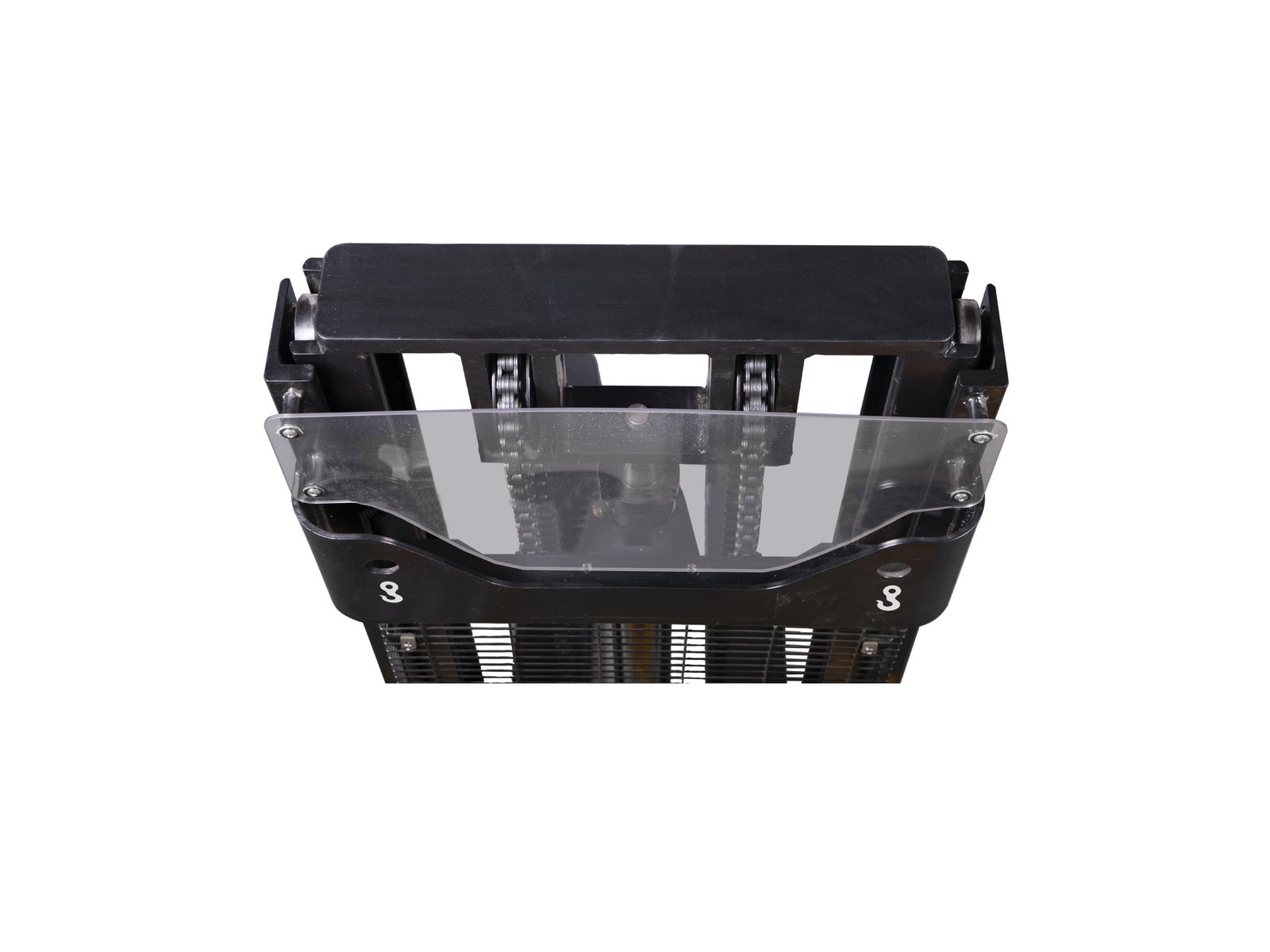

Free Lift Mast for Low-Headroom Applications

One of the main advantages of this equipment is its free lift mast.

The free-lift function allows the forks to rise without immediately extending the mast, which can be valuable when working in areas where overhead clearance is limited.

Typical applications include:

Trucks and Containers

The free-lift function can help operators lift pallets inside trucks and containers where overhead space is restricted.

Low Ceiling Warehouses

The stacker can be useful in warehouses where the mast needs to operate under limited ceiling height during initial pallet lifting.

Elevators

The compact operating concept can be useful when pallet handling equipment needs to enter or operate around elevators with restricted height.

Mezzanine Areas

The free-lift function can provide additional flexibility when working around mezzanine floors and other structures with overhead restrictions.

Confined Storage Areas

The combination of pedestrian operation and free-lift mast makes the stacker suitable for applications where maneuverability and overhead clearance are important considerations.

Applications

The 1200 kg Full Electric Free Lift Stacker 3500 mm is suitable for:

• Warehouse pallet stacking
• Pallet rack replenishment
• Internal pallet transportation
• Loading and unloading trucks
• Container material handling
• Distribution centers
• Logistics operations
• Manufacturing facilities
• Production material handling
• Retail warehouses
• Inventory storage
• High-level pallet placement
• Low-ceiling warehouse applications
• Confined warehouse areas



The STEERX electric stacker range includes standard electric walkie stackers, high lift stackers, free lift stackers and straddle-leg configurations.
